When painting trucks, trailers, heavy equipment, and other large components, a properly designed paint booth is essential for achieving consistent finishes while maintaining an efficient production environment.
A cross draft truck booth is a proven and practical solution for large-equipment finishing. Its straightforward airflow design makes it well suited for operations that need to accommodate oversized products while controlling overspray and maintaining a clean, consistent painting environment.
How Cross Draft Truck Booths Work
In a cross draft booth, filtered air enters through the front of the booth and moves horizontally across the work area toward the rear exhaust system. As the air travels through the booth, it carries overspray away from the product and toward the exhaust filters.
This simple front-to-back airflow pattern provides a controlled environment for spray finishing and can be adapted to accommodate a variety of large products, including:
- Trucks and commercial vehicles
- Trailers
- Construction and agricultural equipment
- Industrial machinery
- RVs and other oversized components
- Designed Around Your Production Needs
Cross draft booths can be customized to fit the product being painted, available building space, and production requirements. Depending on the application, options may include different door configurations, LED lighting, exhaust systems, makeup air, insulation, heating, and control systems.
Proper engineering is important because a paint booth must function as part of the entire finishing operation. Product dimensions, coating processes, airflow, ventilation, utilities, production volume, and material handling should all be considered when designing the system.
Production Systems Cross Draft Truck Booths
Production Systems specializes in the design and integration of custom industrial finishing systems, including paint booths, ventilation, ovens, makeup air, material handling, and controls.

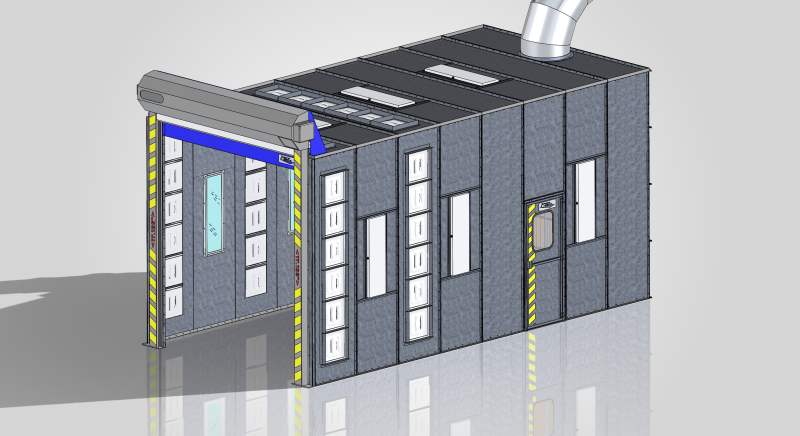

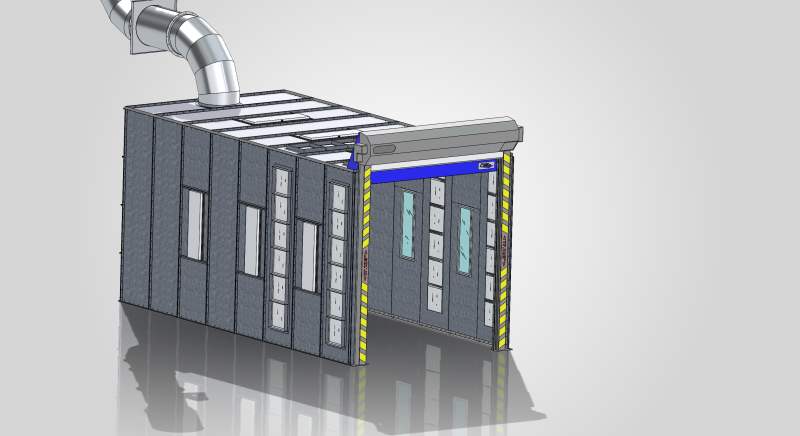

To expand its truck booth offering, Production Systems plans to offer 45 Cross Draft Truck Booths in five width-and-height configurations:
12′ W × 12′ H
14′ W × 14′ H
16′ W × 16′ H
18′ W × 18′ H
20′ W × 20′ H
This range will give manufacturers greater flexibility when selecting a booth size for their trucks, equipment, facility, and production requirements.
For more information about Cross Draft Truck Booths and custom finishing systems, contact Production Systems today.
